Logic Gates Board

Hardware for teaching boolean algebra with light and motion

In stock · $35.00

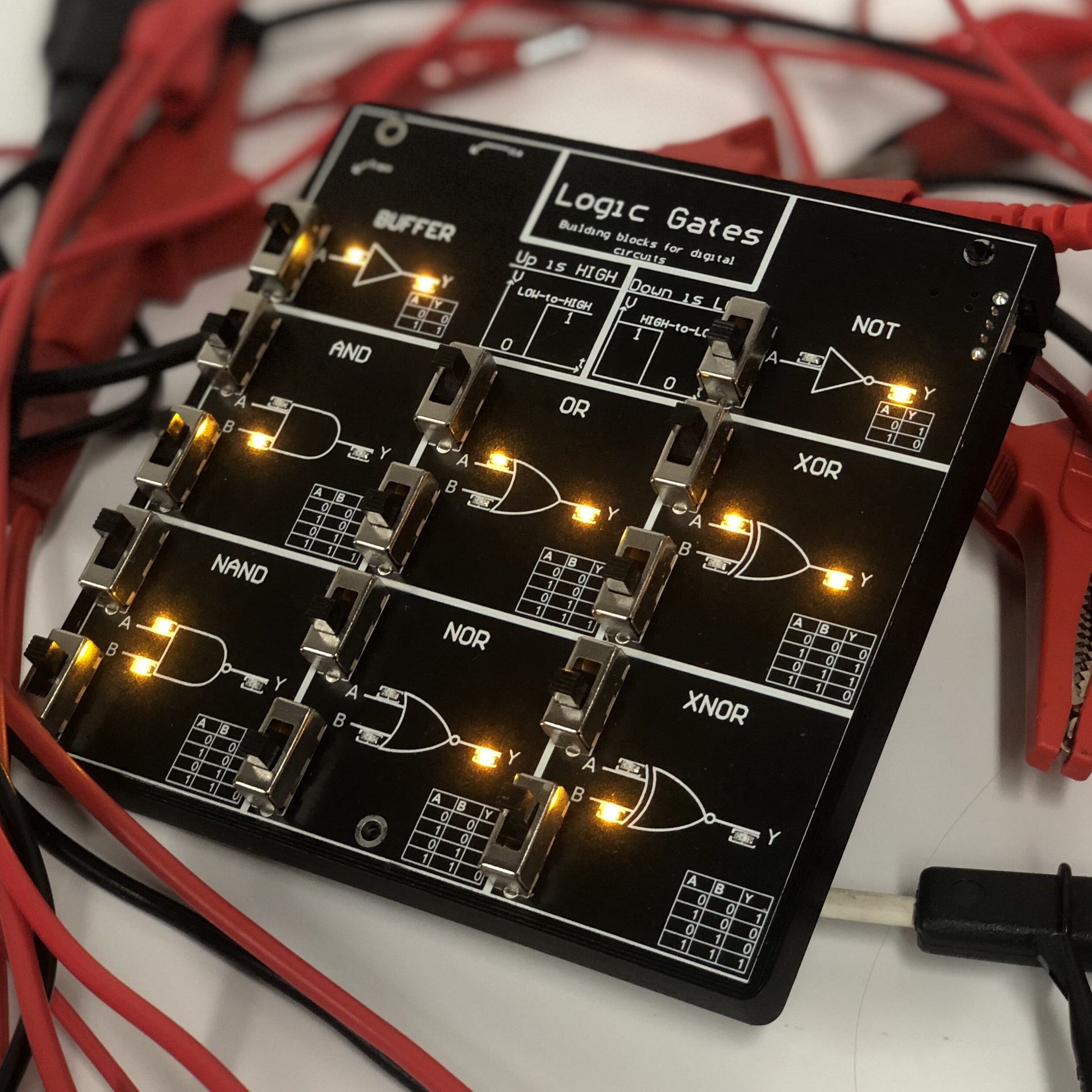

Logic Gates Board with LED indicators and labeled switches

Overview

Bring abstract truth tables to life. This matte-black PCB gives students tactile switches, bright yellow LEDs, and printed logic symbols so they can see how AND, OR, NOT, NAND, NOR, XOR, and XNOR gates actually behave.

It ships fully assembled. Add power, flip a switch, and the board animates to confirm everything is live.

Perfect for: first-year computer science courses, makerspaces, electronics clubs, and hands-on workshops.

Key features

Truth table and logic symbology silk-screened next to each gate
High-brightness 3 mm amber LEDs (λ ≈ 590 nm) for instant feedback
Satisfying toggle switches so students feel each state change
Animated power-on sequence that checks every LED and gate
Complete boolean operator set with independent outputs

Need bulk or academic pricing? Message us via our Tindie listings.

Technical specifications

Substrate	FR-4 epoxy fiberglass (1.6 mm)
Logic family	74HC series CMOS
Supply voltage	4.5 V – 5.5 V DC
Input logic levels	V_IL: 0–1.35 V, V_IH: 3.15–5 V
Propagation delay	~8 ns (typical @ 5 V)
Dimensions	150 mm × 100 mm × 1.6 mm
Connectors	2.54 mm pitch headers
LED specs	20 mA forward current, 2.0 V forward voltage

What you can teach

Boolean algebra fundamentals with visual reinforcement
Differences between combinational and sequential logic
How truth tables map to hardware implementations
Introductory hardware debugging and verification
Binary representations via included price conversions
