Logic Trainer
A modular workstation for deep digital logic exploration
Available now · $79.99
Overview

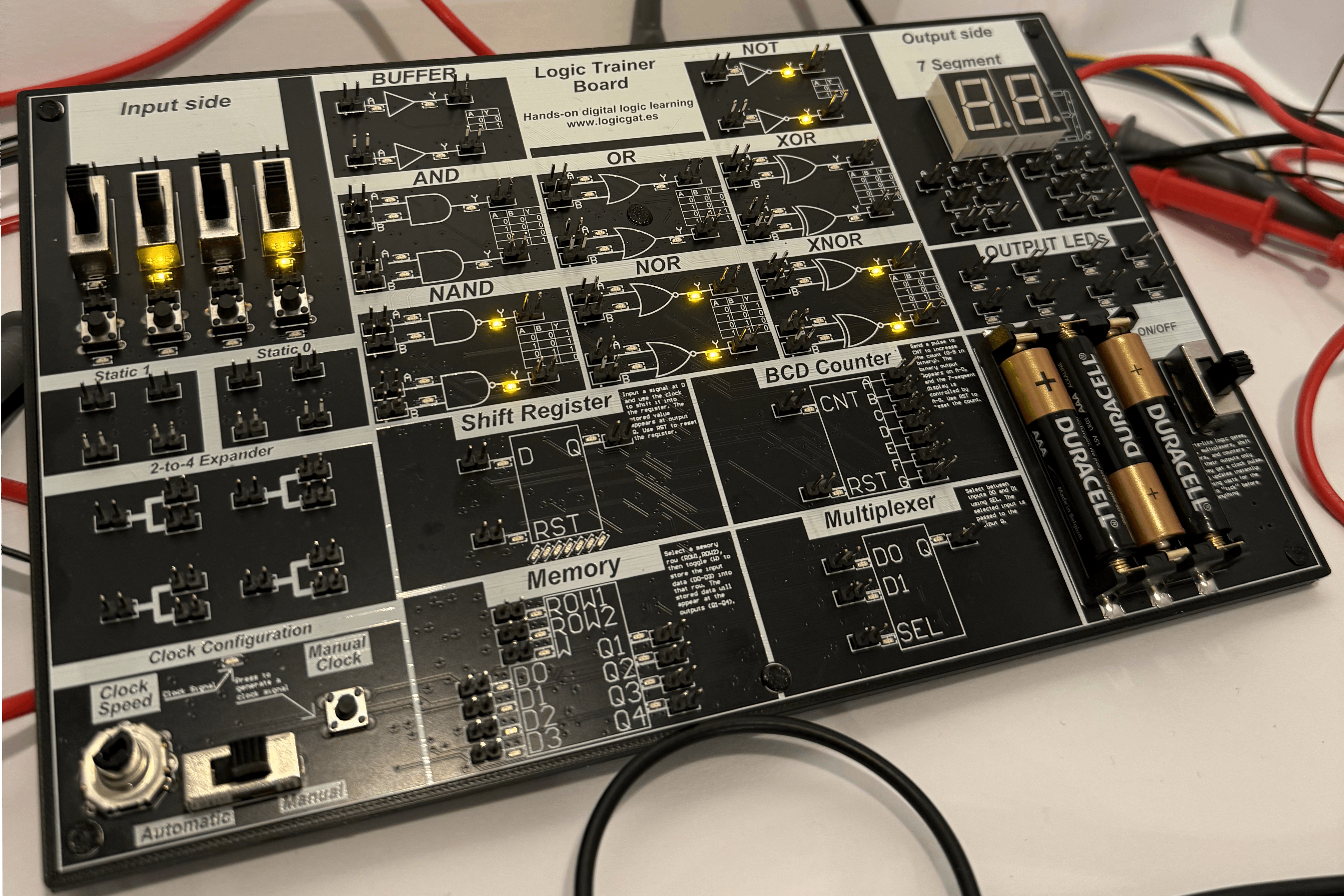

Build and debug full digital systems without leaving the bench. The Logic Trainer combines a controllable clock, jumpers, memory, multiplexers, counters, and visualization so learners can experiment with sequential logic using real signals.
Configure combinational blocks, observe propagation through the RGB LED array, and store values in the onboard registers. Every module is labelled and wired for quick breadboard-style experiments.
Designed for: university labs, advanced high school programs, prototyping workshops, and self-taught builders who want more than a simulator.
Modules & learning outcomes
- Clock generator with sweep from 0.2 Hz to 5 Hz plus single-step pushbutton
- Nearly 700 components wired into logic blocks, shift registers, multiplexers, and LED drivers
- Four-bit memory latch with visual outputs for state retention exercises
- Binary-coded decimal counter connected to a seven-segment display
- Configurable routing matrix for building custom circuits
- RGB LED array for visualizing timing diagrams and bit patterns
- Jumpers and labeled headers to practice hardware debugging
- Example code snippets for Verilog and MicroPython workflows
- USB-C power plus battery support for classroom flexibility
- Ready-to-run demos for explaining registers, multiplexers, and shift operations
Request the educator guide or workshop syllabus through our Tindie messages.
Technical specifications
| Logic fabric | Xilinx Spartan-7 XC7S25 (23K LUTs) |
|---|---|
| Microcontroller | ESP32-S3 dual-core @ 240 MHz |
| Memory | 32 MB QSPI flash + 8 MB PSRAM |
| Display | SH1106 128×64 OLED (I2C) plus seven-segment indicator |
| LED matrix | 64× WS2812B RGB (5050 package) |
| Connectivity | USB-C, Wi‑Fi 802.11b/g/n |
| Power | 5 V / 2 A USB-C or 3×AAA batteries |
| Programming | Vivado, MicroPython, Arduino IDE |
| Dimensions | 200 mm × 150 mm × 25 mm |
